OLV-DS7 Portable Auto Bipap machine With Dual-level ST 25
OLV-DS7 Auto Bipap Machine With Dual-level ST 25
What is BiPAP Machine？
BiPAP is short for Bilevel Positive Airway Pressure. It is specifically designed to treat patients with lung and respiratory diseases. These lung diseases cause dyspnea, which can be relieved by the BiPAP machine. Previously, this special machine was only installed in hospitals. Patients must go to the hospital to be treated with BiPAP. However, an advanced version of the machine is available now and can also be used at home. The BiPAP machine is known to improve the quality of life of patients with lung diseases.
Product Feature
The DS-7 is Bilevel Positive Airway Pressure ST25 (BiPAP ST25) device
💖 Work mode :CPAP,Auto,S,T,ST
💖 0-3 level EPR (expiratory pressure relief)
💖 Real-Time display treatment data
💖 Alarm for power off or mask off
💖 TUV CE and ISO certificated
💖16GB SD card can save about 5 years
💖 Combined smart technologies
💖Heating And Humidification Adjustable 5 Levels
💖American sensor technology, accurate algorithm, automatic identification of your pressure-targeted treatment
Indications for use
1.The Auto CPAP is indicated for the treatment of obstructive sleep apnea (OSA) in patients weighing more than 66 lb (30 kg). The humidifier is integrated in device.
2.The BiPAP ST25 and BiPAP ST30 are indicated for the treatment of obstructive sleep apnea (OSA)/ central sleep apnea (CSA)/ mixed sleep apnea (MSA) in patients weighing more than 66 lb (30 kg). The humidifier is integrated in device.
The device is intended for use in professional healthcare institutions
Product Specification
|
Model
|
OLV-Ds7
|
|
Display
|
2.8’’ TFT 320 x 240
|
|
Mode
|
CPAP, Auto, S, T, ST, APCV
|
|
Pressure
|
4-25CM H2O/ 4-30 cmH2O
|
| IPAP | 4-25CM H2O/4-30CM H2O |
|
EPAP
|
4-20cmH2O/4-20cmH2O
|
|
Data Storage
|
SD Card |
| Power |
Input 100-240V, 50-60Hz, 1-2A; Output + 24V, 2.5A
|
|
DC
|
24VDC 2.5A |
|
Over-Temperature Protection
|
Stop automatically, alarm with 4 times
|
|
Lock Function
|
Yes
|
|
Screen Auto Sleep
|
Auto sleep in 15 minutes, press any button to highlight screen
|
|
Backup Rate
|
5-50/min, adjustable
|
|
I/E
|
10-80% |
|
Inspirate Triggle/Expirate Level/Inspirate Sensitivity
|
1-5 level
|
|
Ramp
|
0-60 mins
|
|
Leak Compensation
|
Yes
|
|
EPR
|
Yes,0-3 level
|
|
Automatic Altitude Adjustable
|
Yes
|
|
Automatic ON/OFF
|
Yes
|
|
Awake Detection
|
Yes
|
| Breath Event Detection |
Yes
|
|
Water Capacity
|
220ML max
|
|
Humidifier Level
|
Integrated Heated, 0-5 level
|
|
Alarm
|
Power off, mask off
|
|

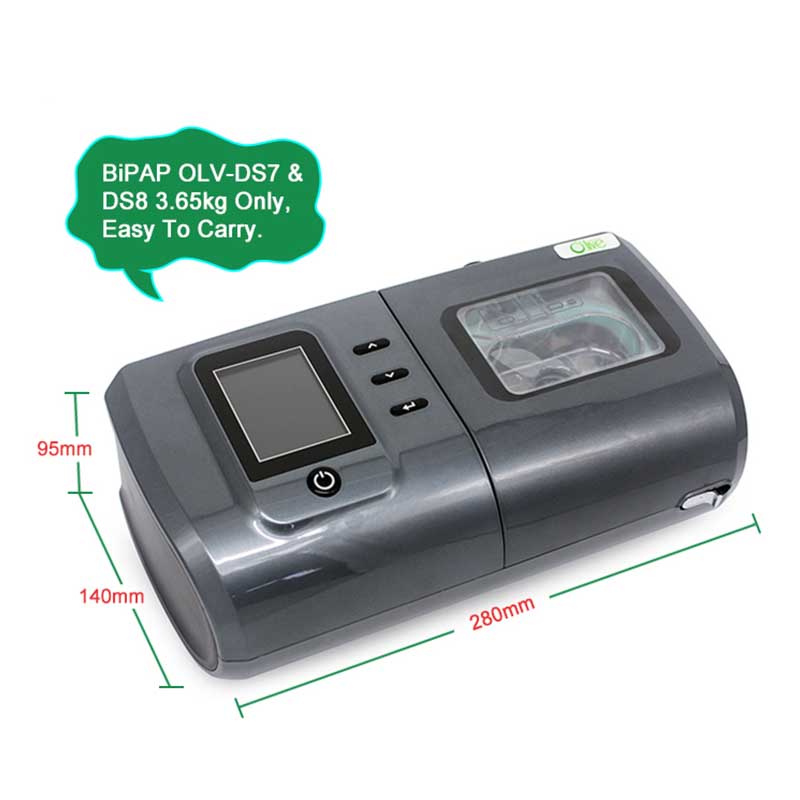

Dimensions(cm)
|
28L x 14W x 9.5H(machine); 38.5L x 36.5W x 16H(1pc carton)
|
|
Weight(with humidifier)
|
1.6Kg(net weight); 3.9Kg(gross weight) |
|

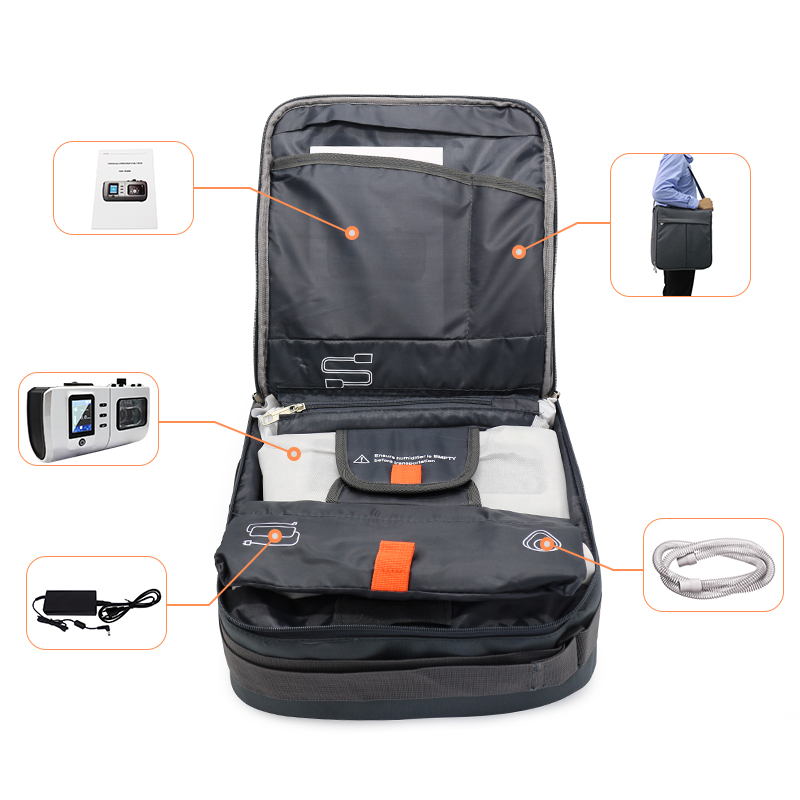

Accessories
|
Integrated heated humidifier, Water tank, Power lead, Travel bag,User manual, Air filter, SD card, Full face mask, Air tubing, Software
|
| Sound |
<28 dB
|

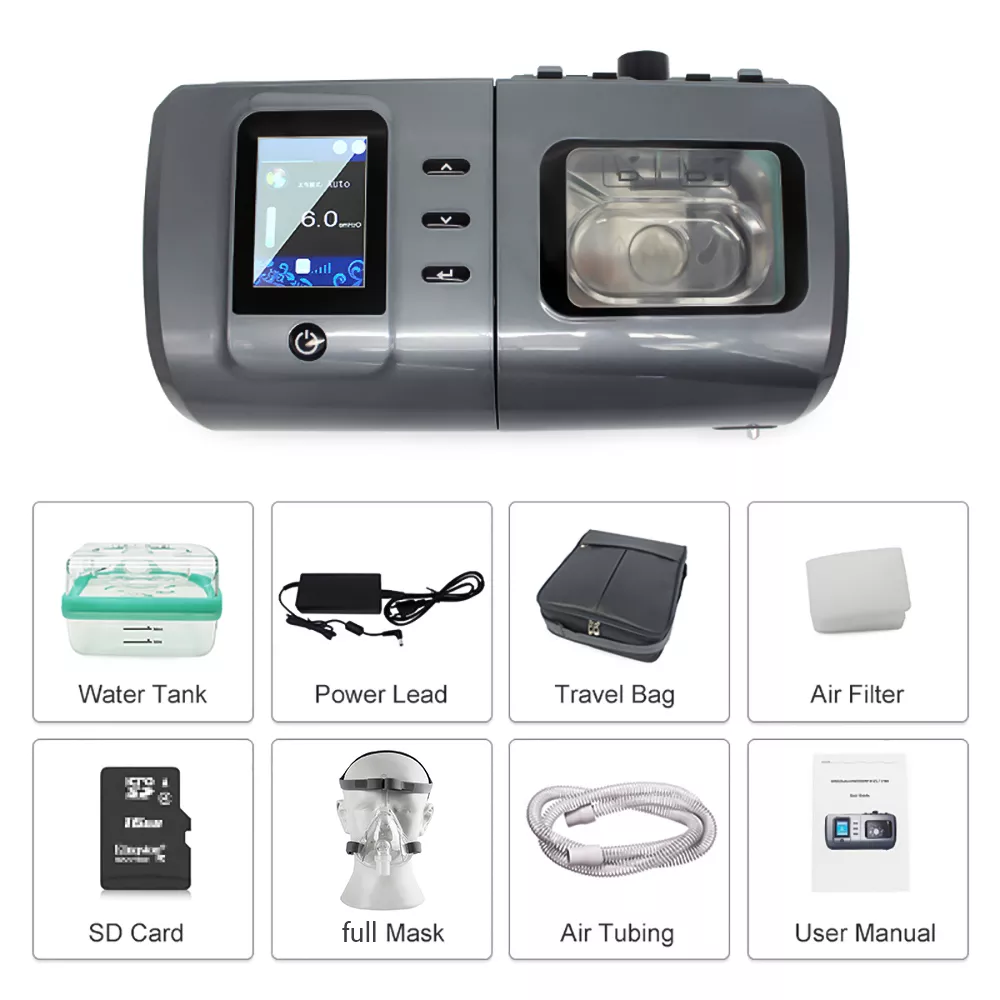

Package List：
| Host & Humidifier | 1Set | SD | 1Piece |
| Full Mask with headgear | 1Set | Travel Bag | 1Piece |
| Air Tube | 1Piece | Power Adaptor | 1piece |
| Hepa filter | 2Pieces | User manual | 1Piece |
We fully support dropshipping, and we are very welcome to wholesale customers, the price and service will make you satisfied, please contact us if necessary! ! !
FAQ
1.What's the mask do you provide?
We can provide two kinds mask: nasal mask or full mask , usually the autocpap comes with nasal mask, bipap comes with full mask. If you want to change it, you can ask for our salesman to do it.
2.How long the warranty?
The unit provide 2 years warranty. If something is wrong with the machine, pls contact our saleman. We will provide the free parts to you
3.What's the accessories?
Include : integrated heated humidifier, water tank, power cord, travel bag, user manual, air filter, SD Card, nasal mask(full mask), air tubing
4. How to clean the mask？
You can clean the mask for the hot water, then dry in the air(avoid sunlight)
5.Does the cpap can connect with oxygen concentrator？
Yes, the cpap machine can connect with the oxygen concentator. There is a T type connector on the cpap machine, which can coonect with the oxygen concentrator.
