4set 12.1" Patient Vital Signs Monitor ECG/NIBP/TEMP/RESP/SPO2/PR ICU Bedside
Patient Vital Signs Monitor 12.1" ECG/NIBP/TEMP/
Multi-Parameter Monitor
Brand yongrow
Fuse: F2AL 250V
Electrical Specifications: 220 VAC, 50Hz
Operating Temperature: 5°℃~40°℃
Maximum Input Power: 70VA
Working Humidity: 15%~80%
Battery:
11.1V 2200mAh rechargeable lithium battery
Weight:
4.5KG
Atmospheric Pressure:
86kPa~106kPa
Product Size:
342*252*139.5mm
Standard Configuration
SpO2, PR/HR, NIBP, ECG, RESP, 2-TEMP

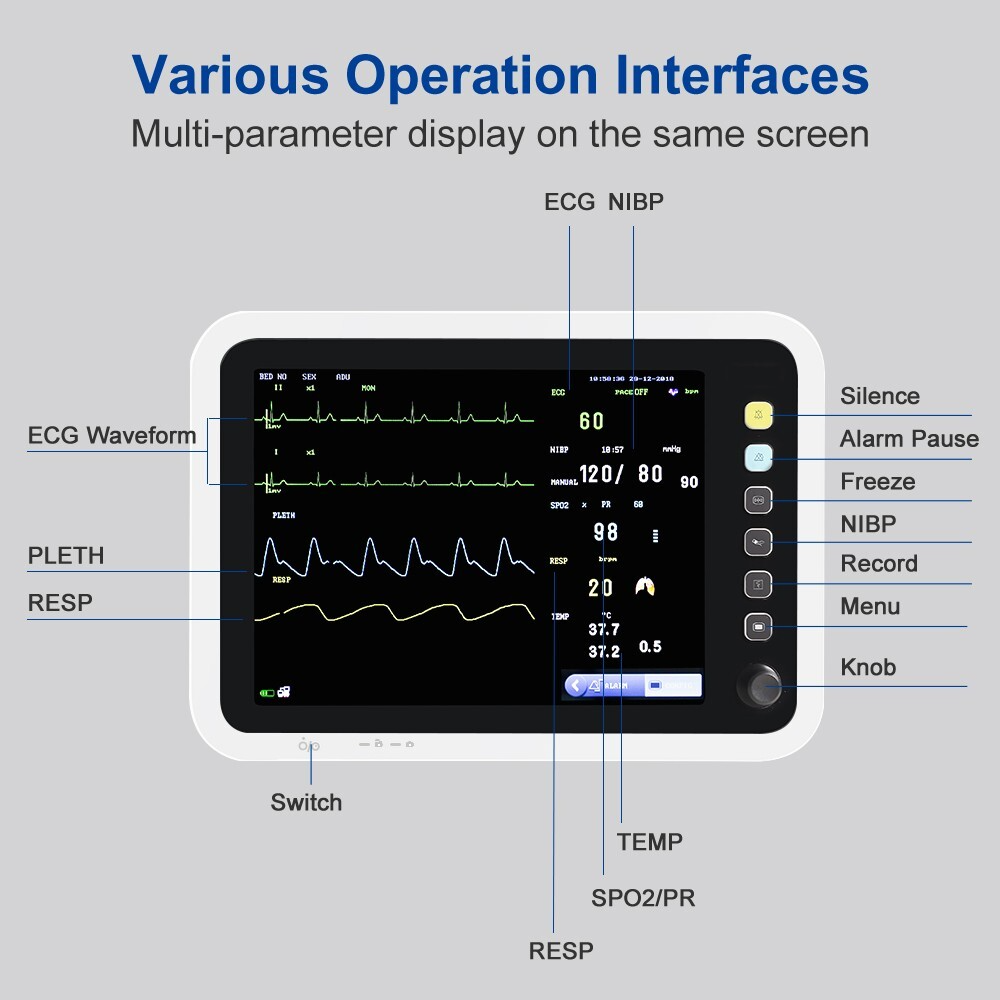

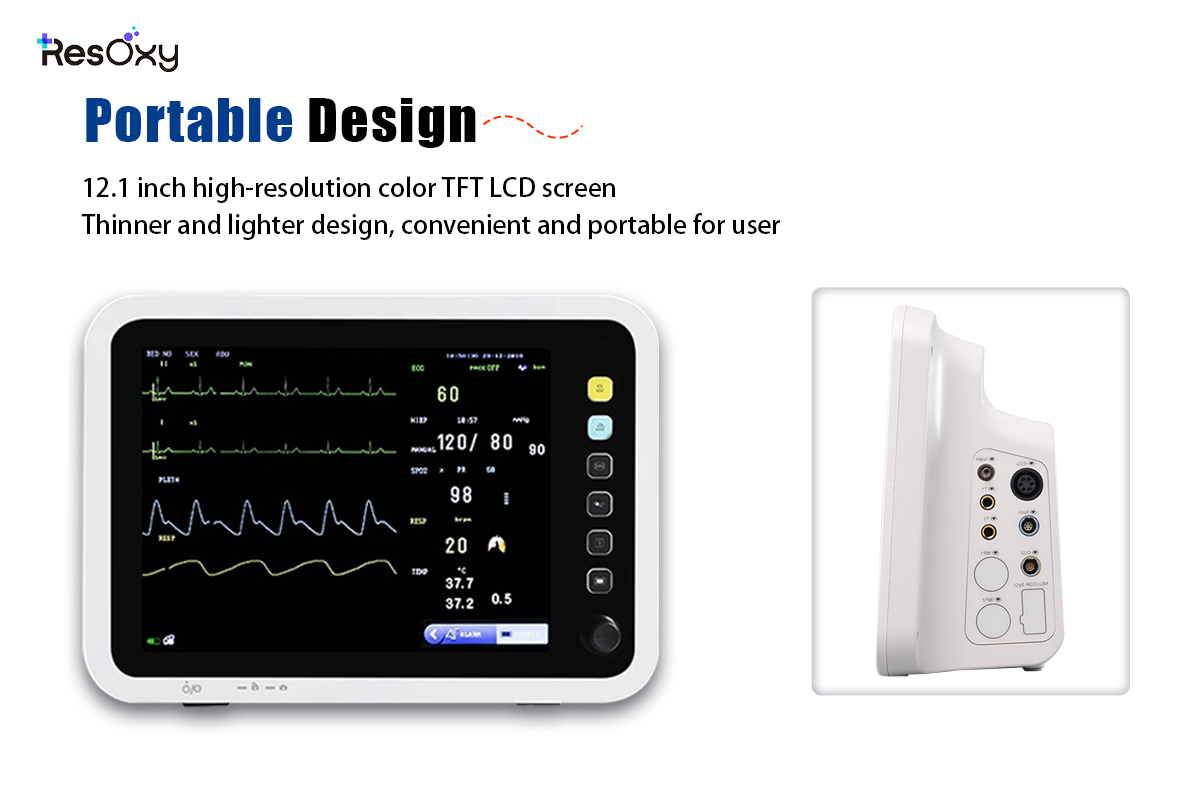

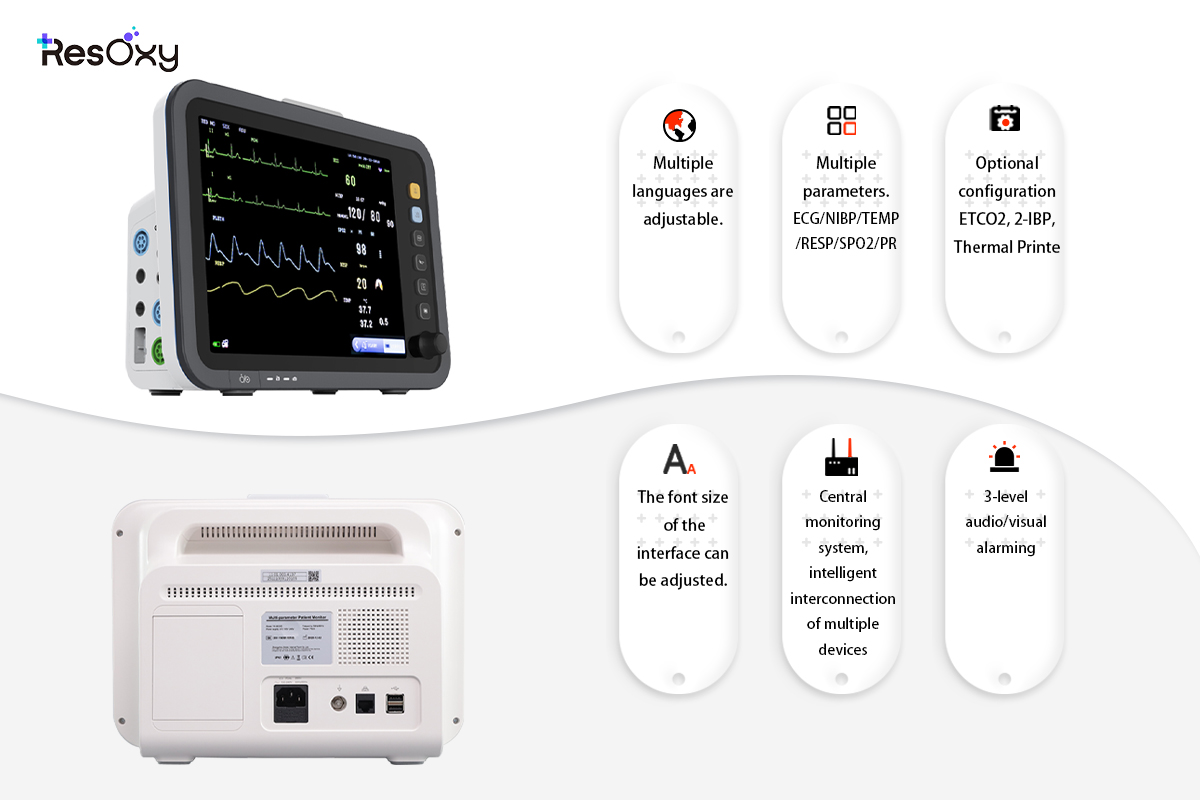

✔12.1 inch high-resolution color TFT LCD screen

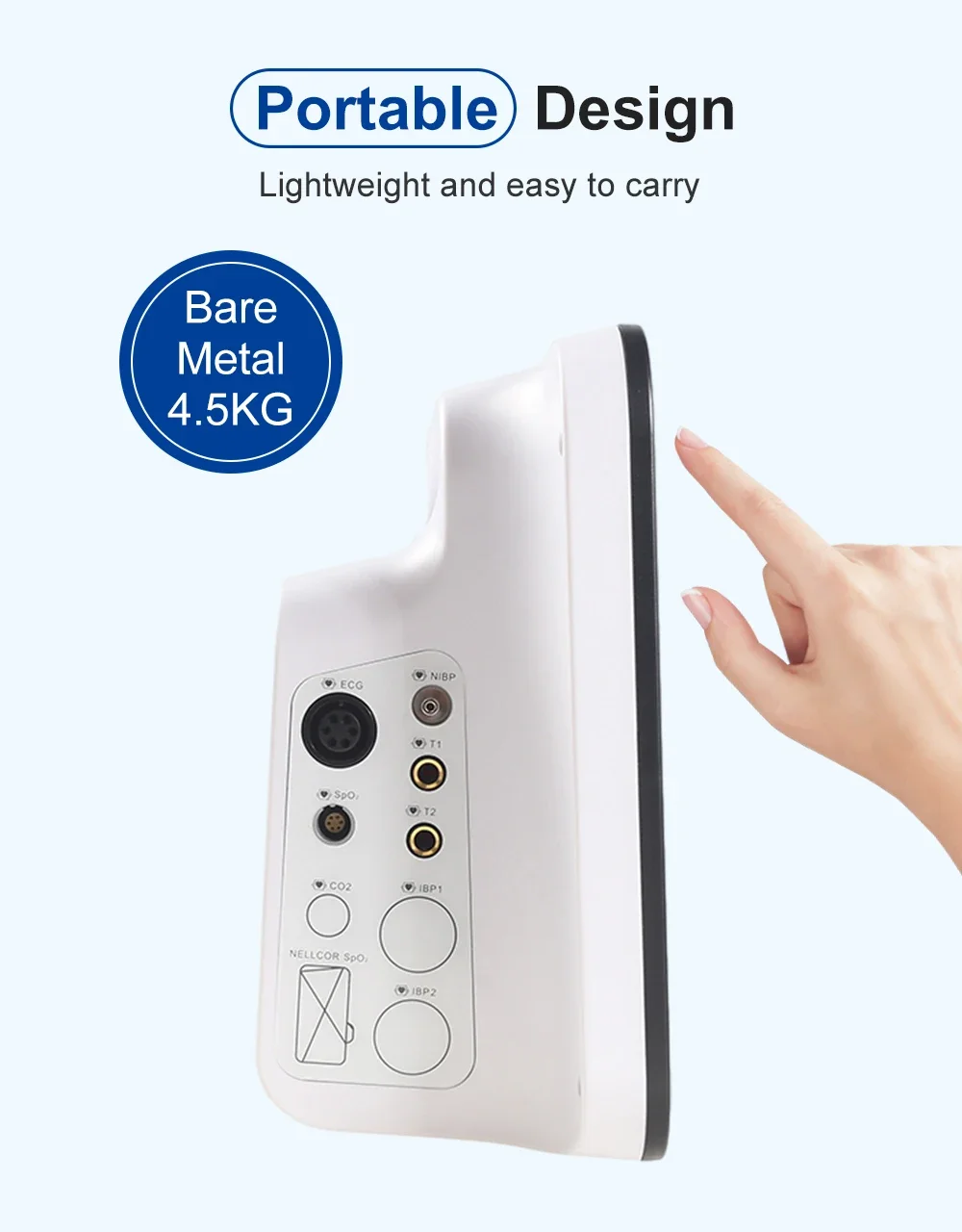

✔Thinner and lighter design, convenient and portable for user
✔ Freeze instant waveform for real time S-T segment analysis, pace-maker detection.
✔ Full touch screen selectable, more convenient for operation
✔ Real time S-T segment analysis, pace-maker detection

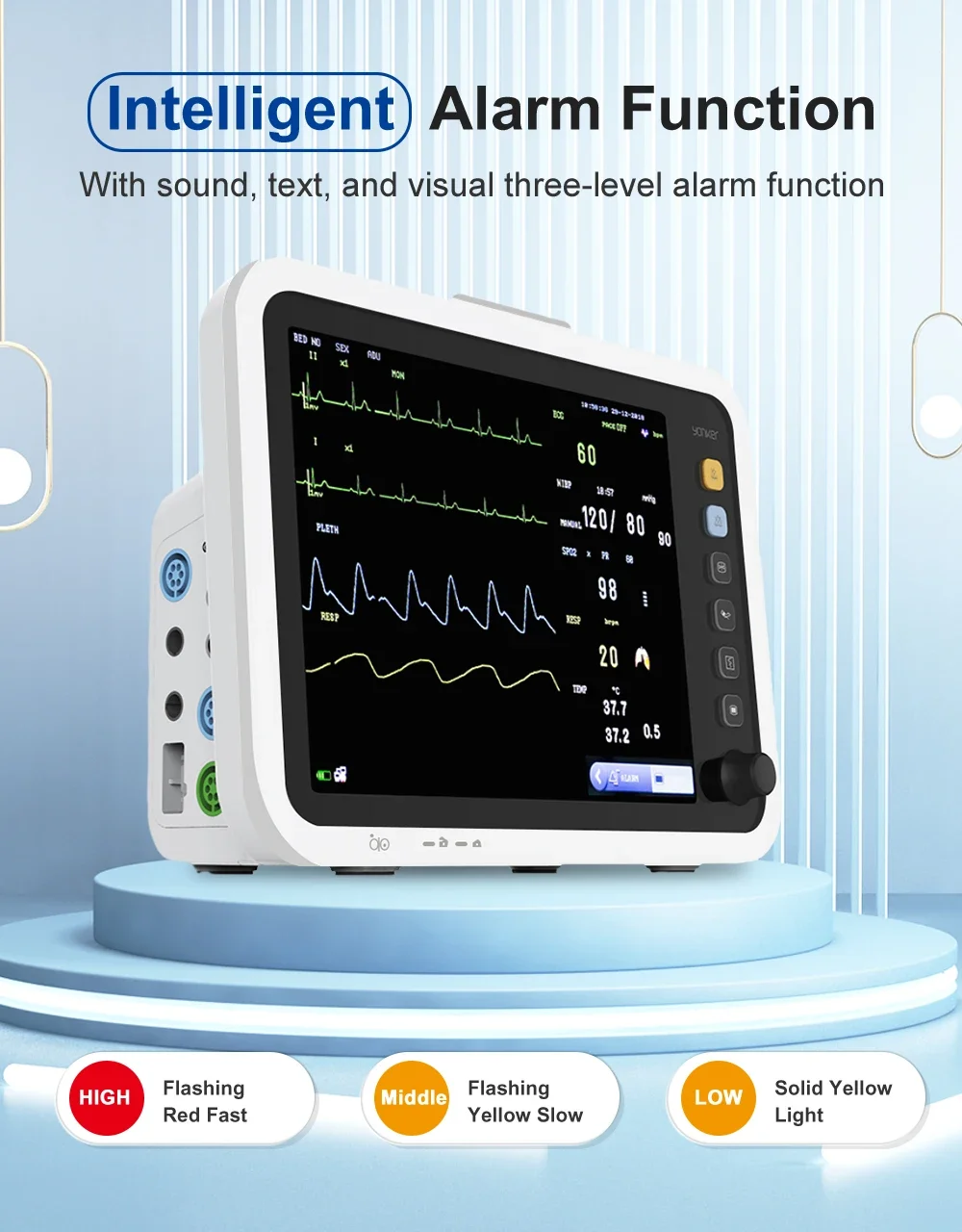

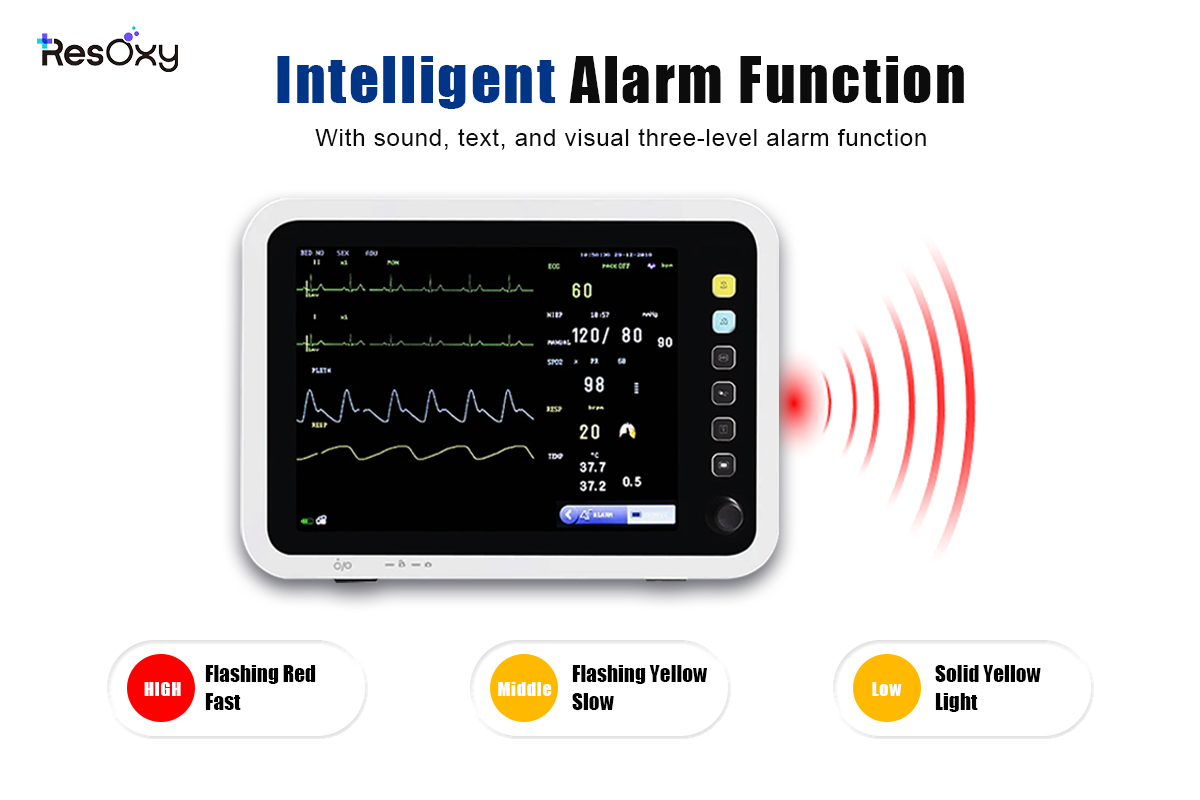

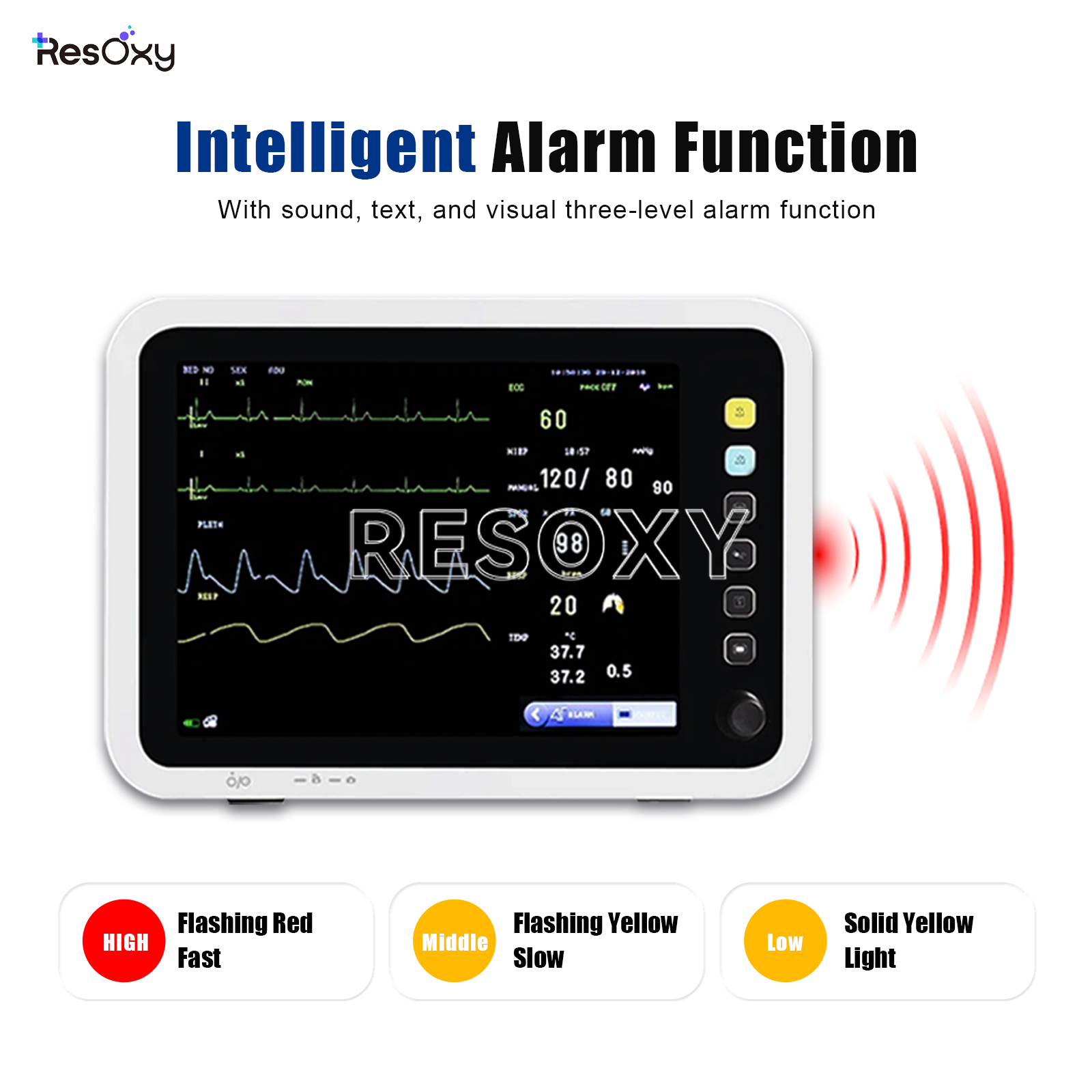

✔ 3-level audio/visual alarming
✔ Efficient resistance to interference of defibrillator and HF knife.

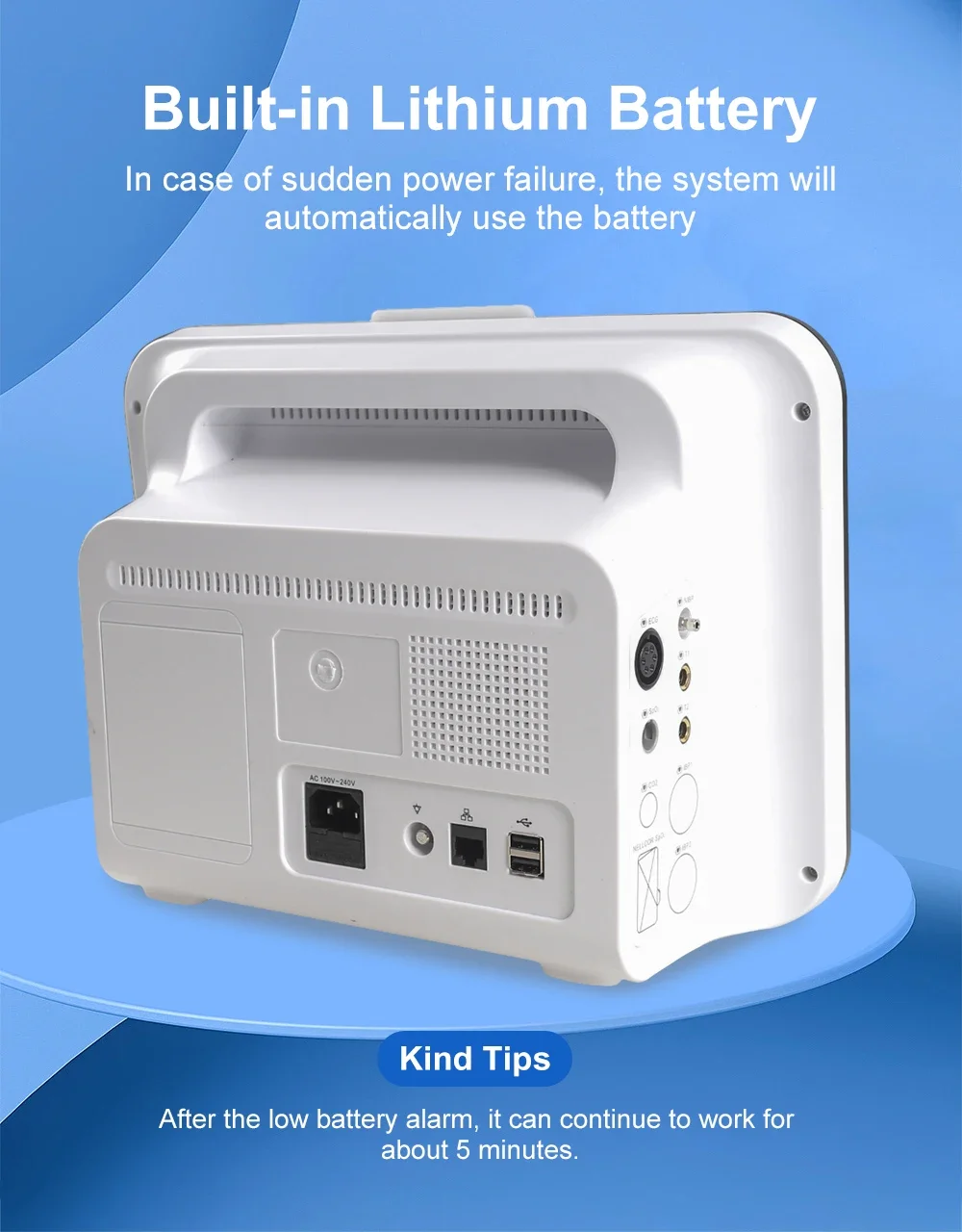

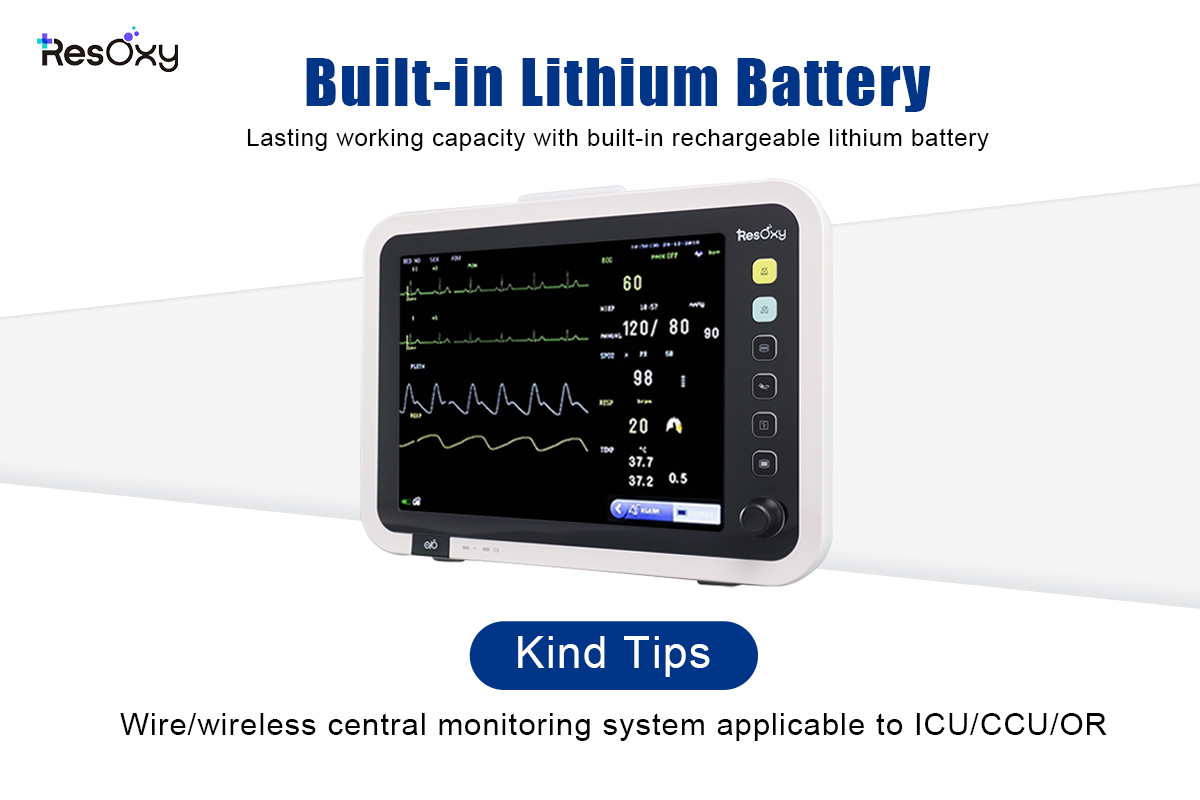

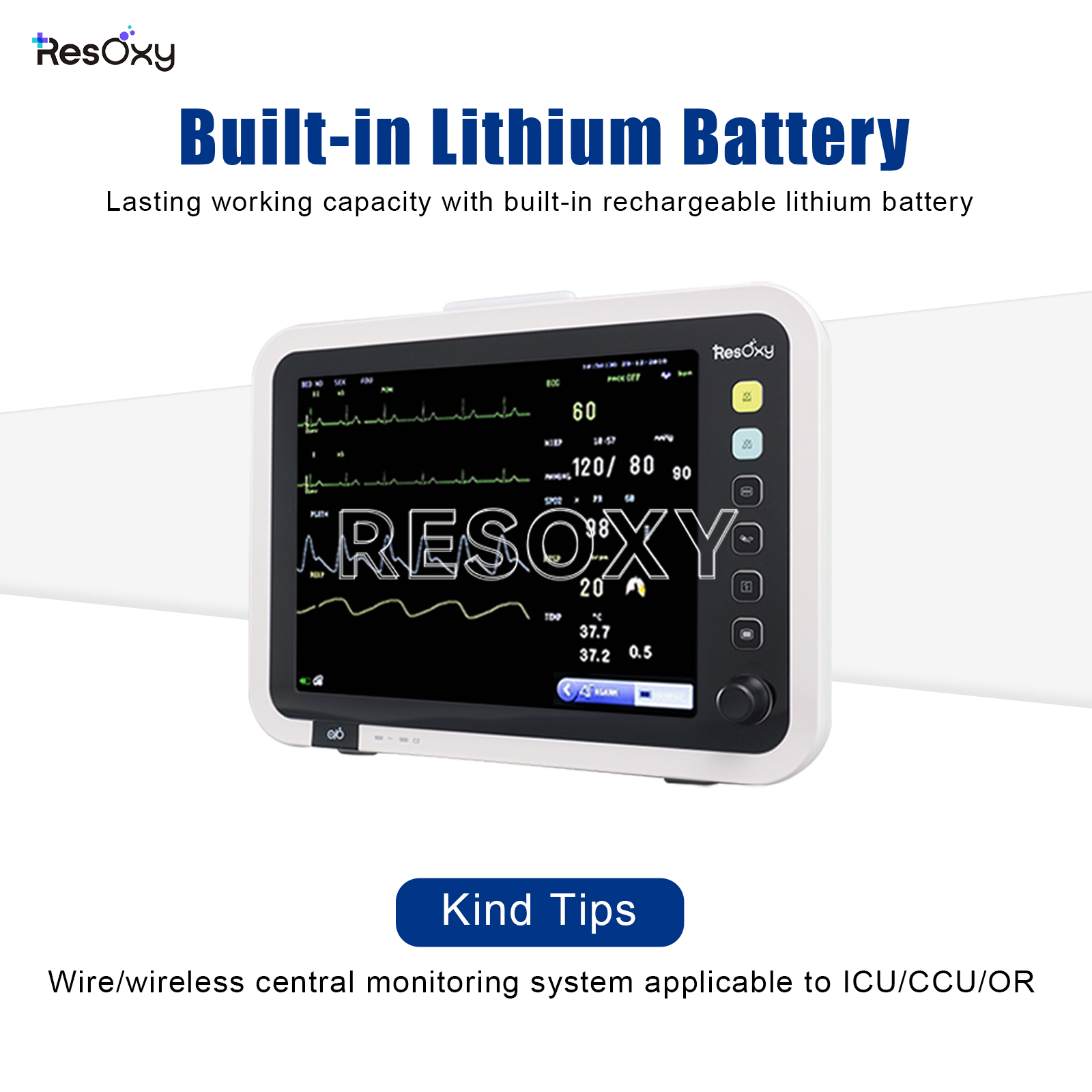

✔ Lasting working capacity with built-in rechargeable lithium battery

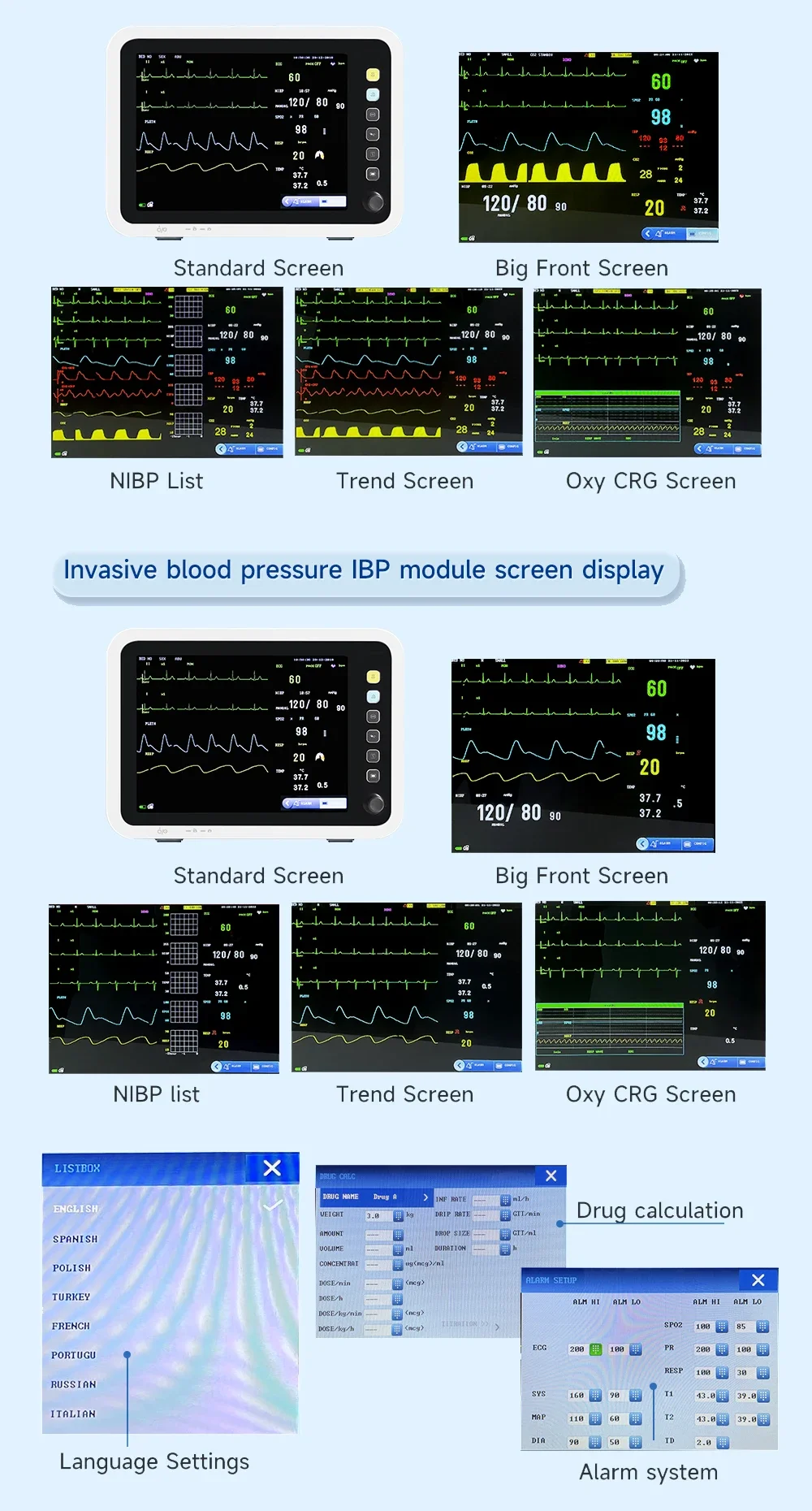

✔ 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm evens records recall, 7-day trend chart in storage

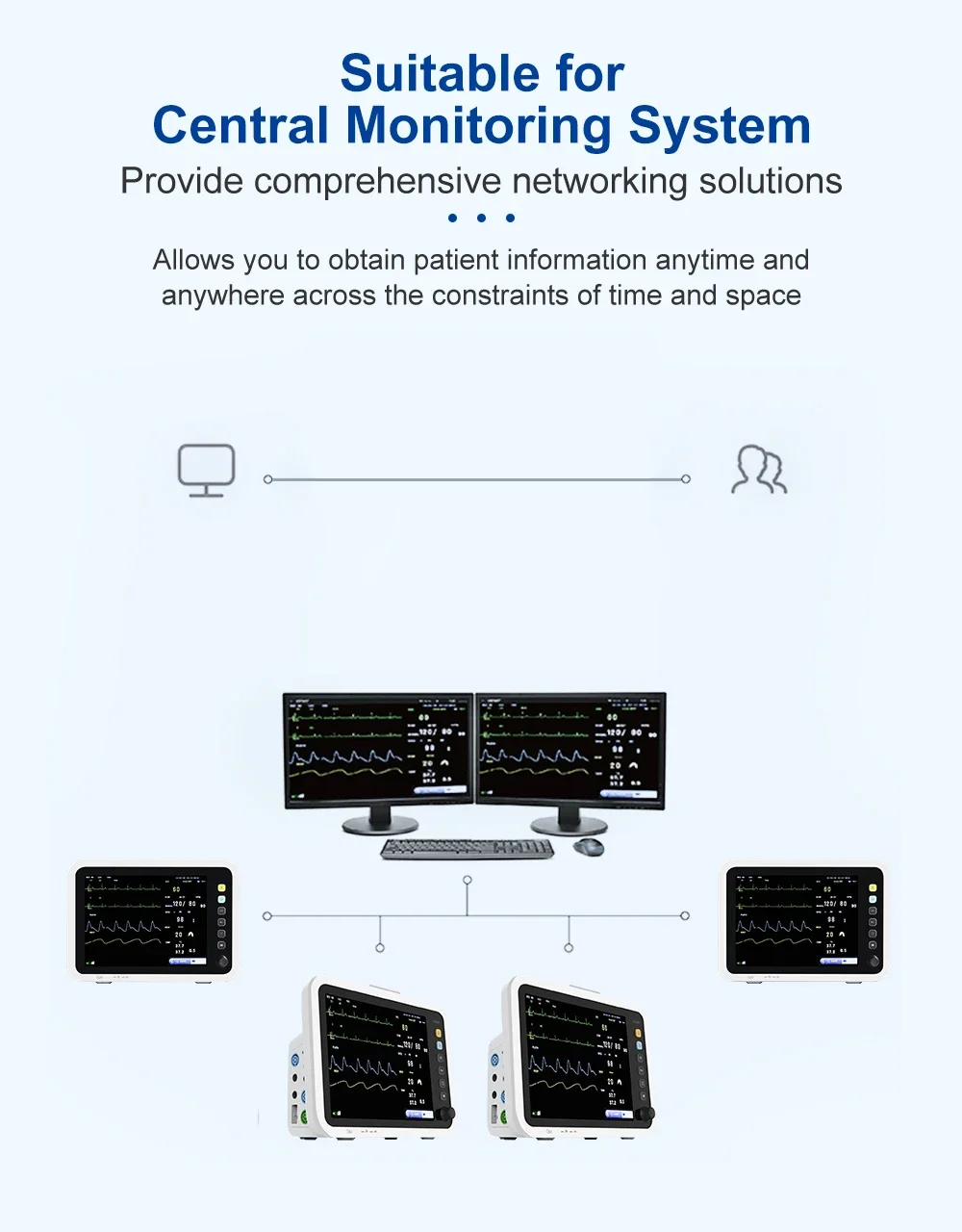

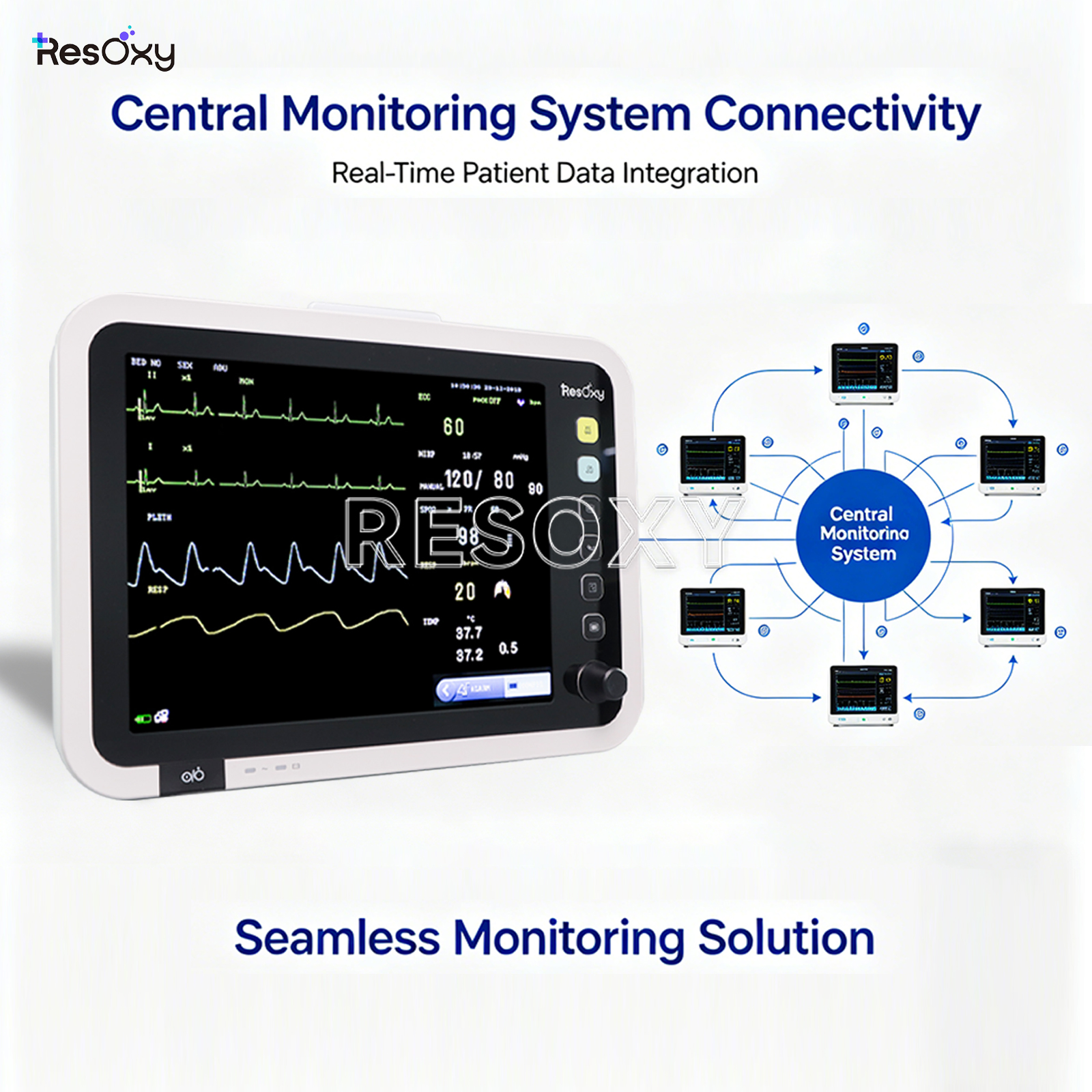

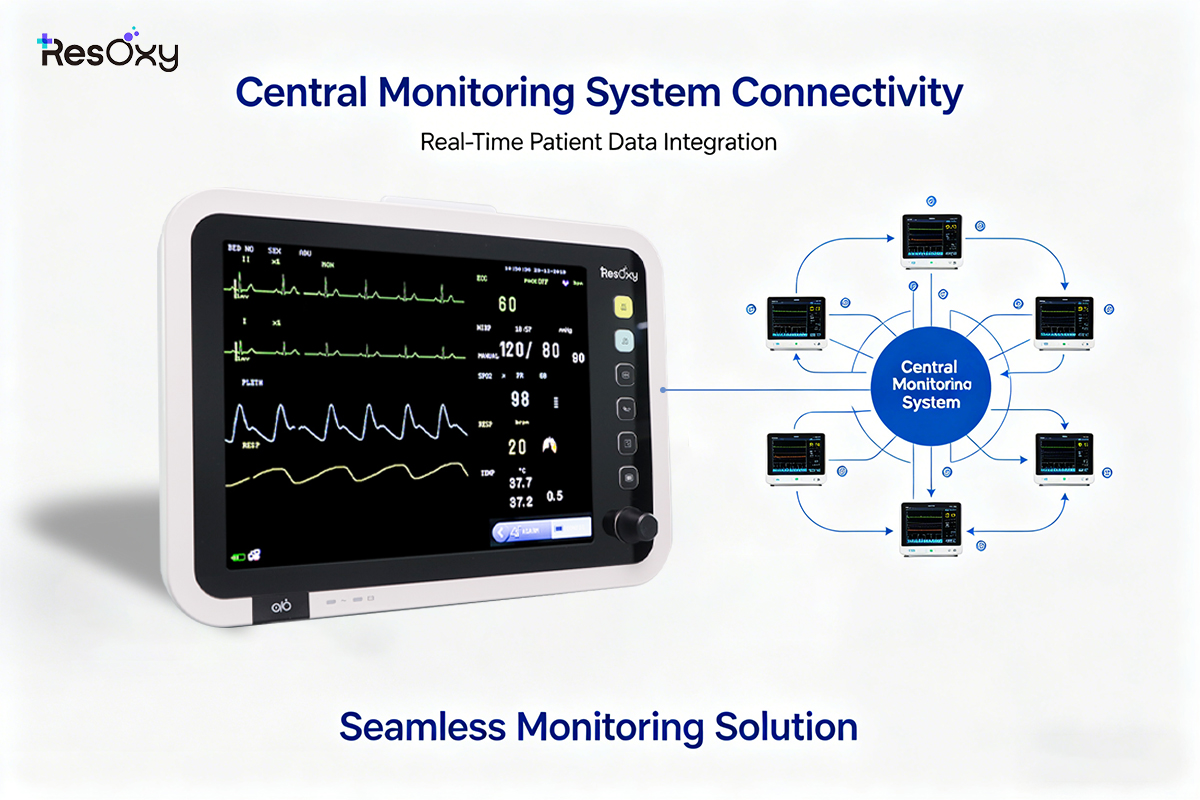

✔ Wire/wireless central monitoring system applicable to ICU/CCU/OR
Product Parameters
Size: 12 * 11.4 * 6.4 inch
Weight: 4kg
Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA
Battery: 11.1V 2200mAh rechargeable lithium battery
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP

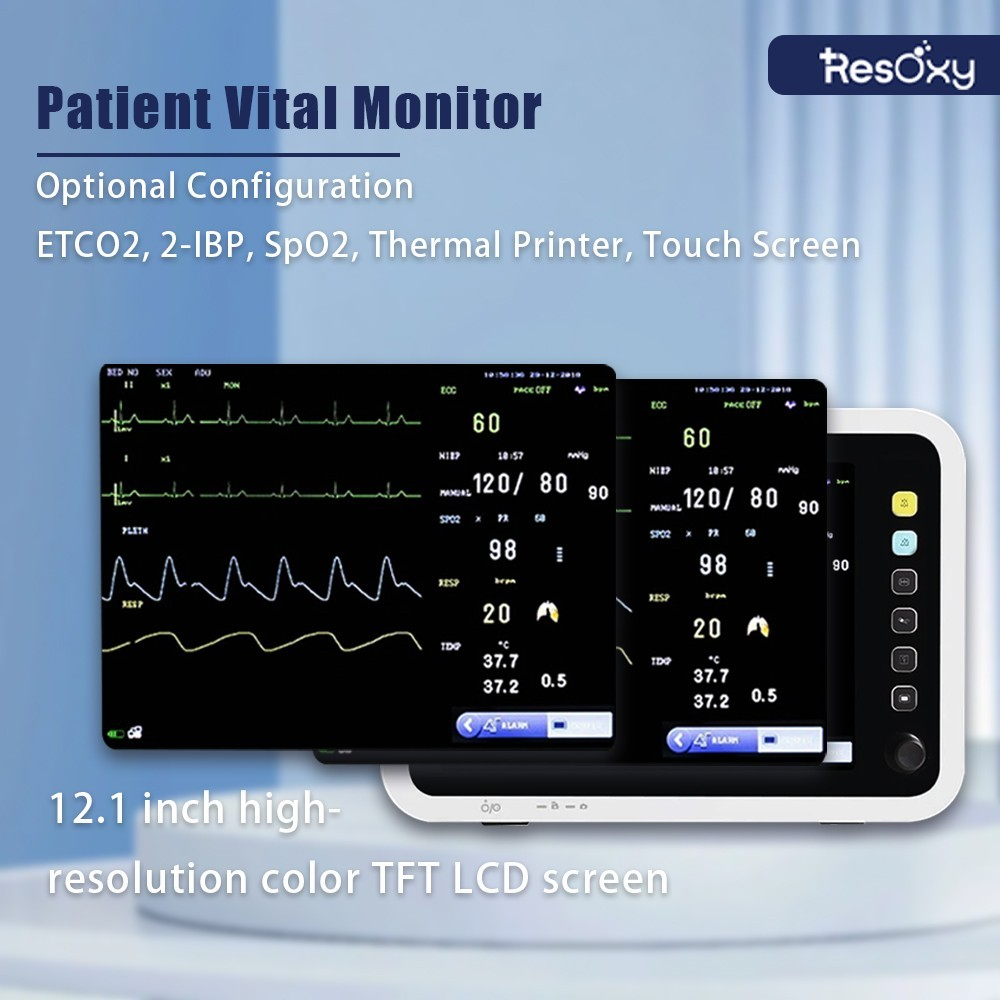

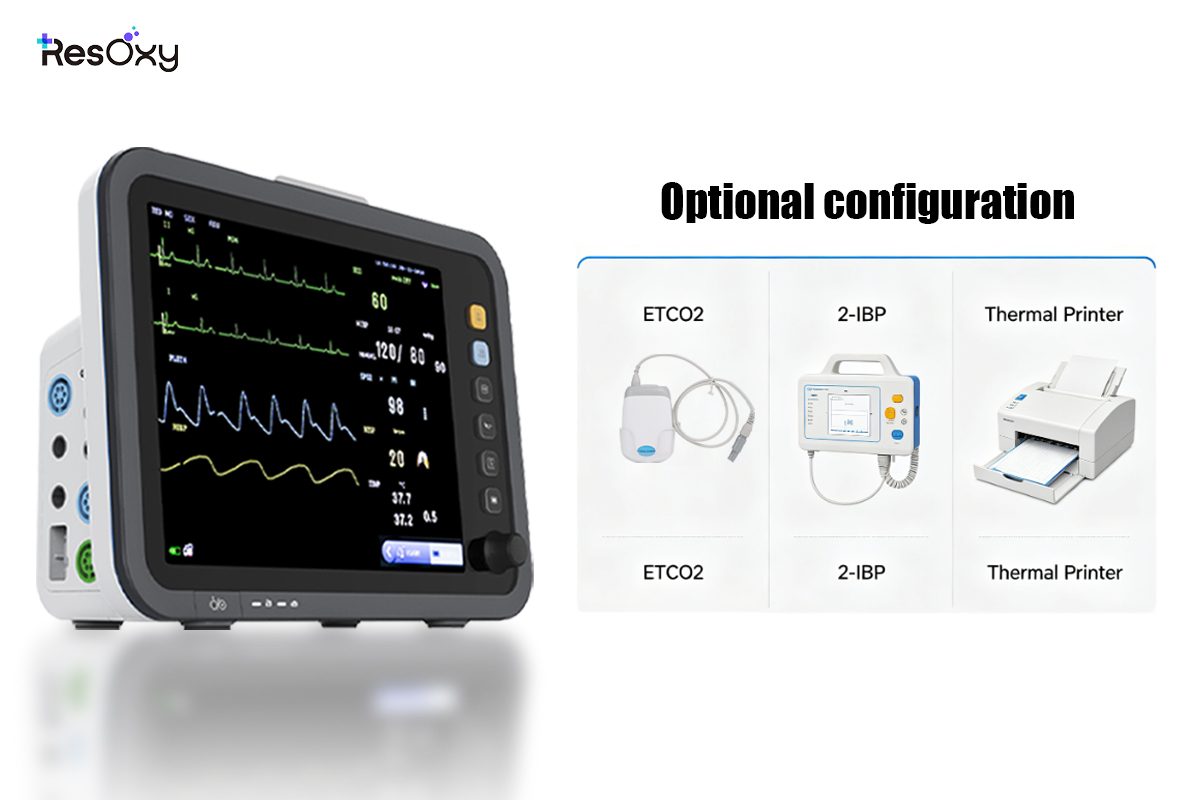

Optional Configuration: SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer

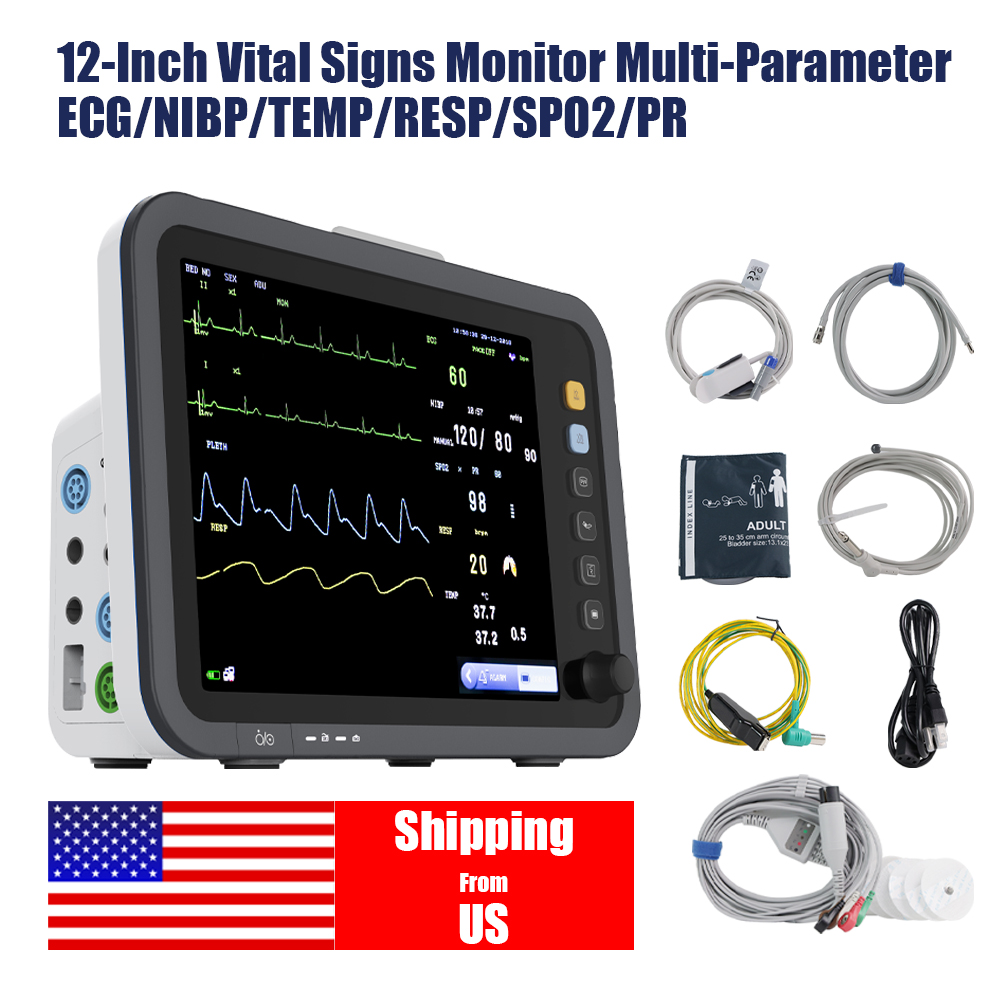

Patient Monitor Package Include
1 x device
1 x Rechargeable lithium battery
1 x Power line
1 x Earth wire
1 x User's Manual
1 x Reusable Spo2 sensor (for SpO2, PR)
1 x Blood pressure cuff and tube(for NIBP)
1 x ECG cable (for ECG, RESP)
1 x Temperature probe (for Temperature)
5xDisposable ECG Electrodes

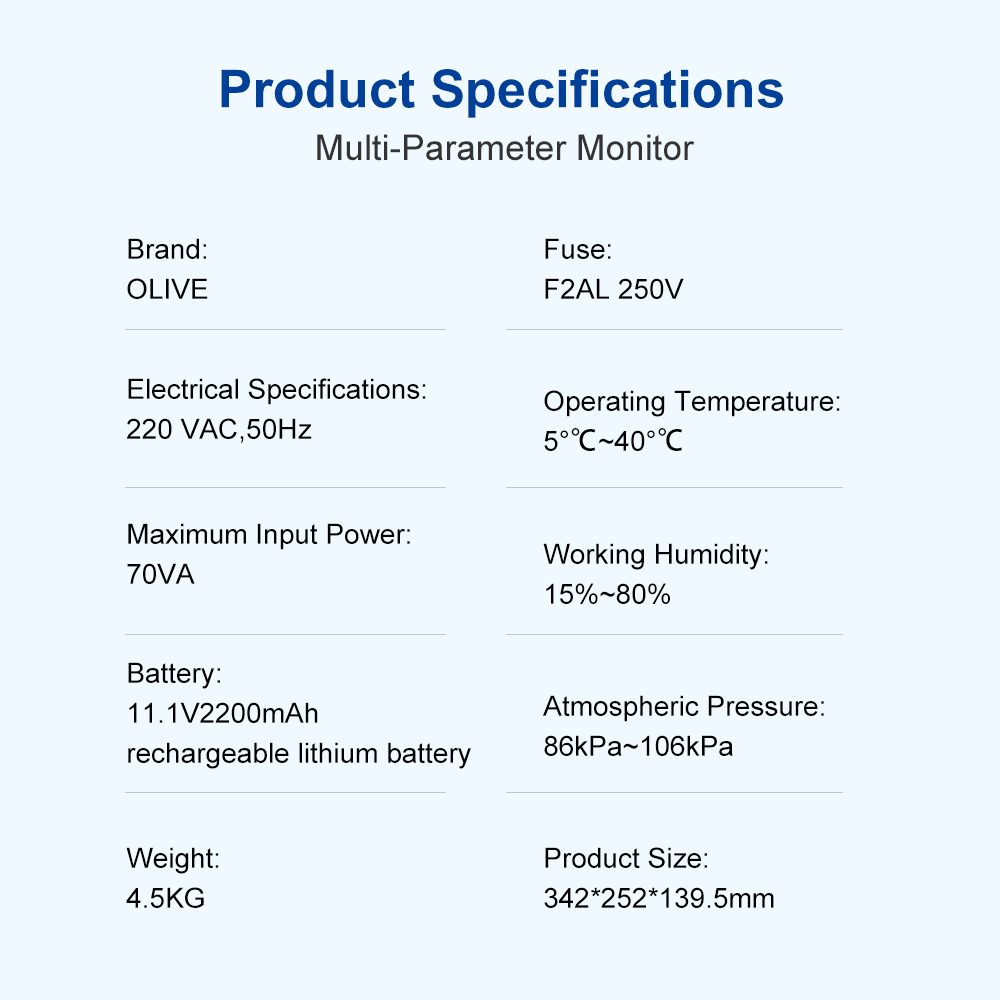

Product Specifications
Multi-Parameter Monitor
Brand yongrow
Fuse: F2AL 250V
Electrical Specifications: 220 VAC, 50Hz
Operating Temperature: 5°℃~40°℃
Maximum Input Power: 70VA
Working Humidity: 15%~80%
Battery:
11.1V 2200mAh rechargeable lithium battery
Weight:
4.5KG
Atmospheric Pressure:
86kPa~106kPa
Product Size:
342*252*139.5mm

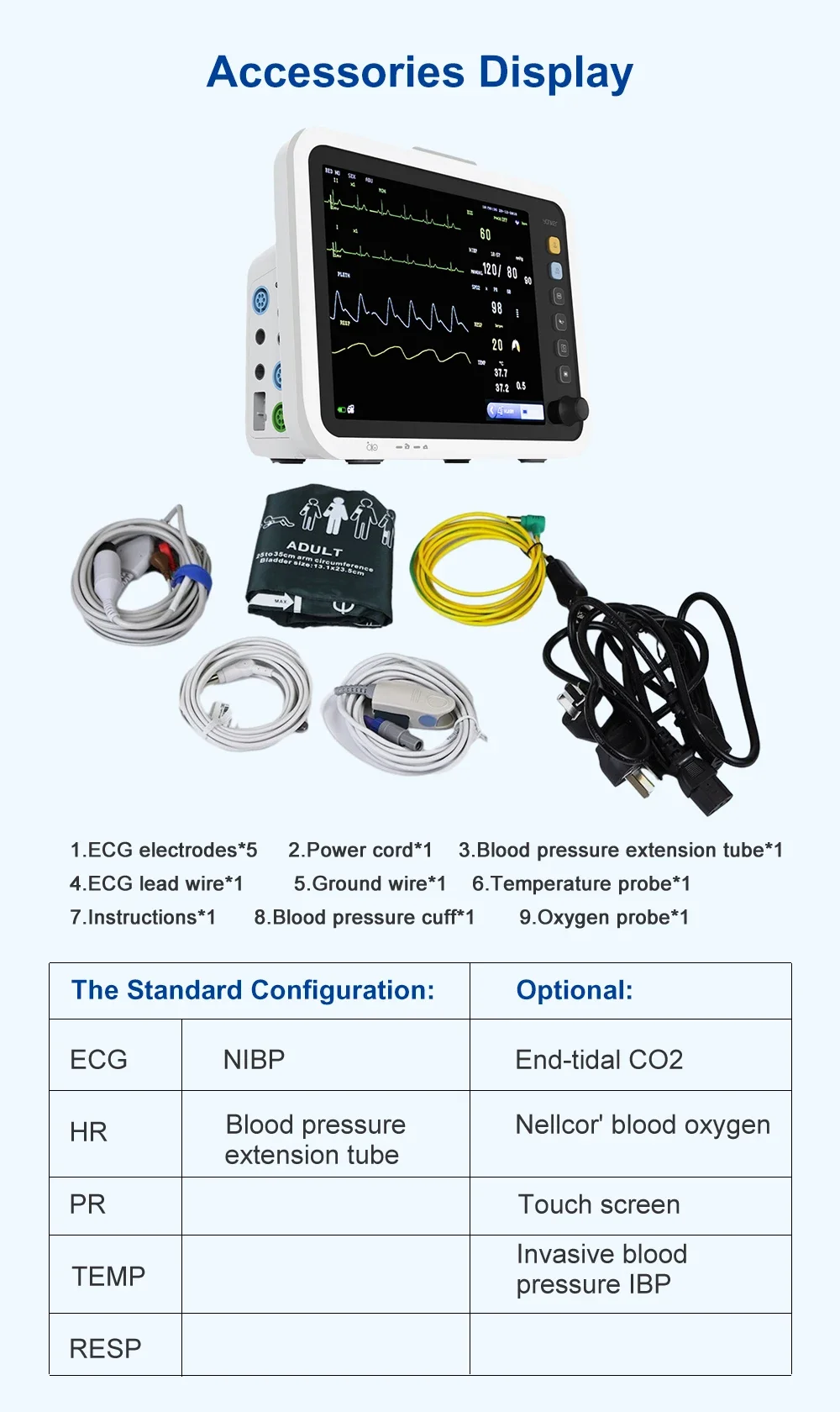

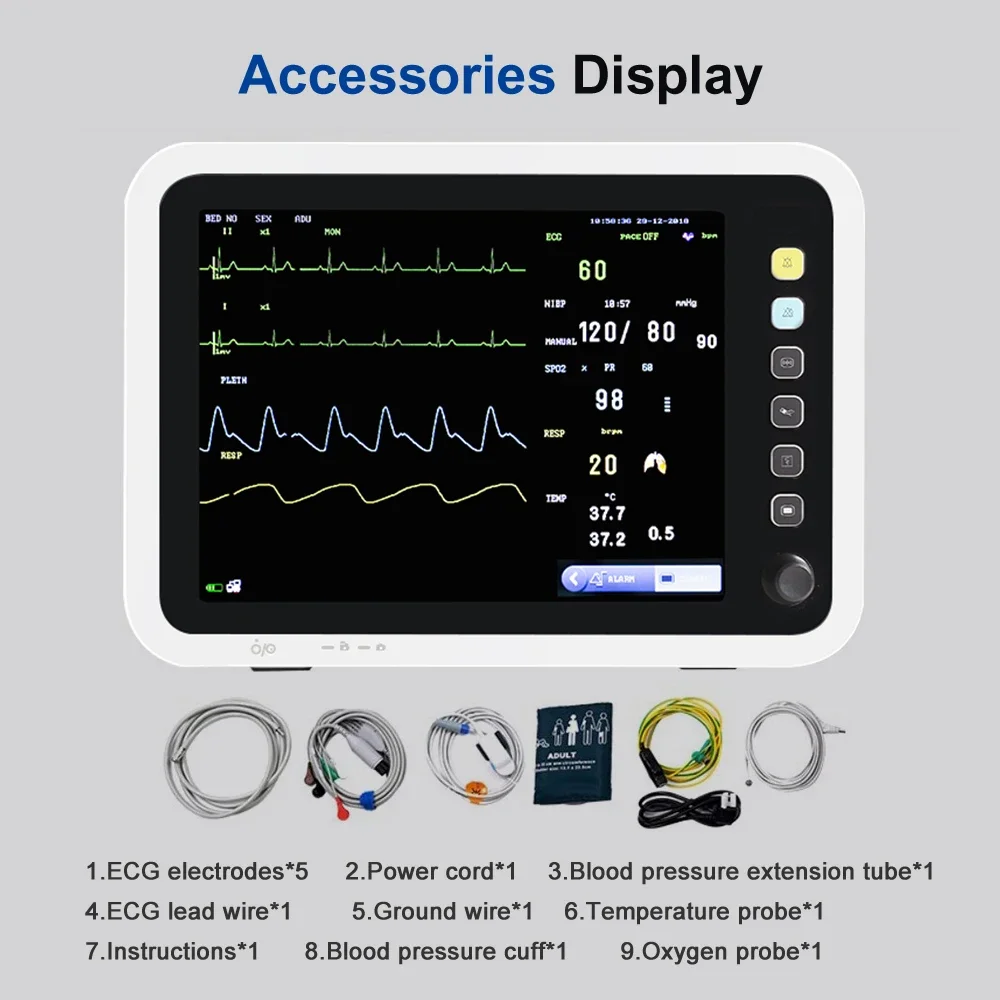

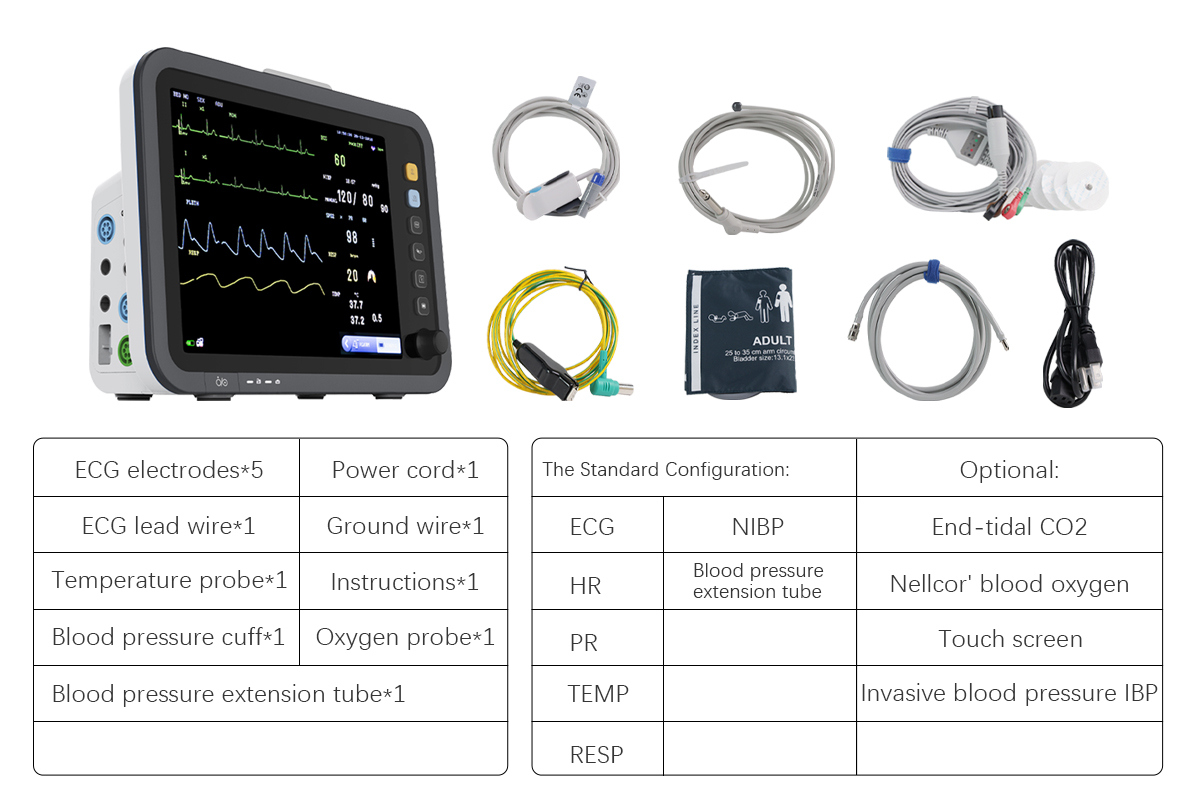

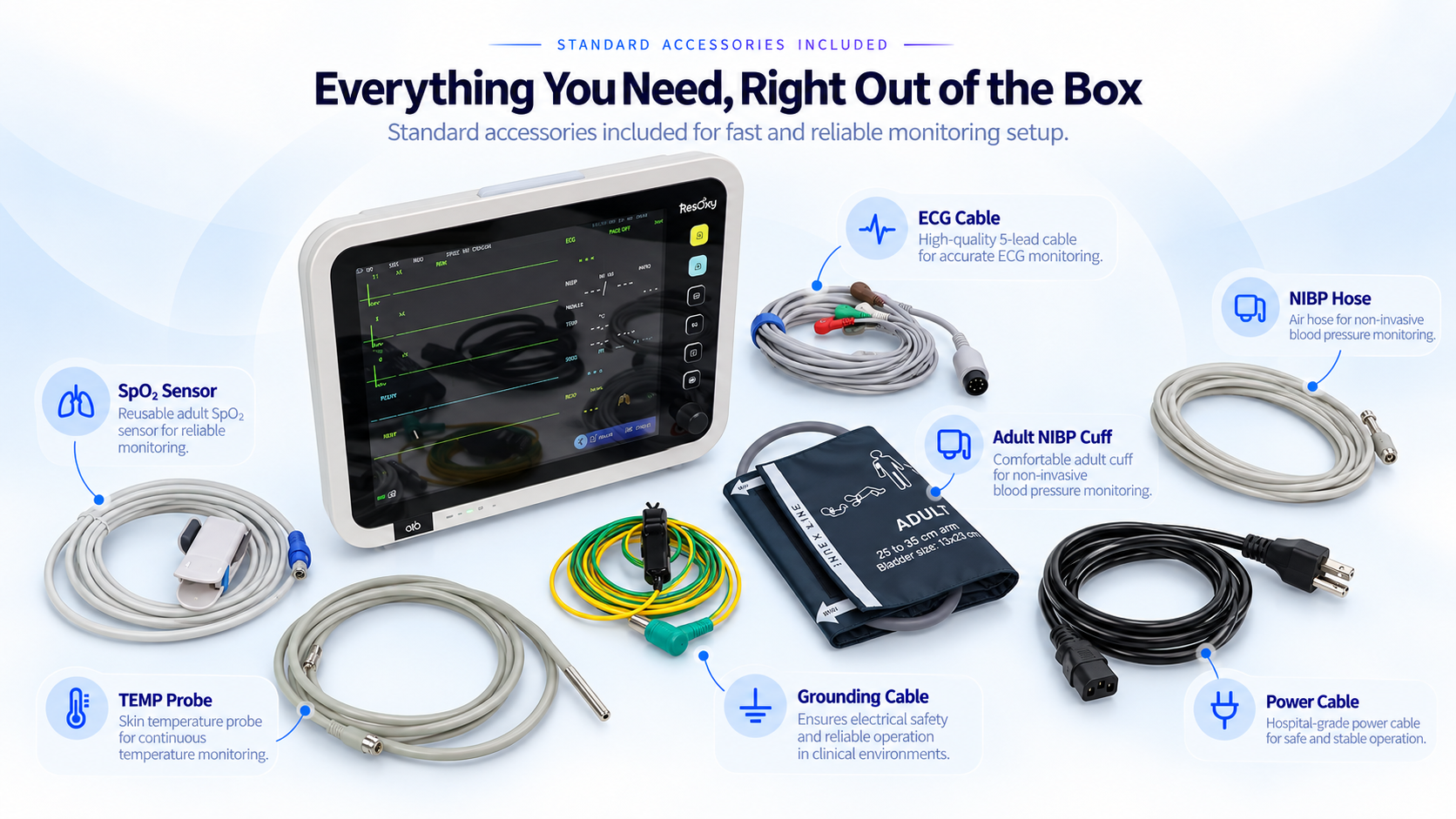

Accessories Display
1.ECG electrodes*5
2.Power cord*1
3.Blood pressure extension tube*1
4.ECG lead wire*1
5.Ground wire*1
6.Temperature probe*1
7.Instructions*1
8.Blood pressure cuff*1
9.Oxygen probe*1
10.Li-Battery*1
Medical patient monitor machine parameters
|

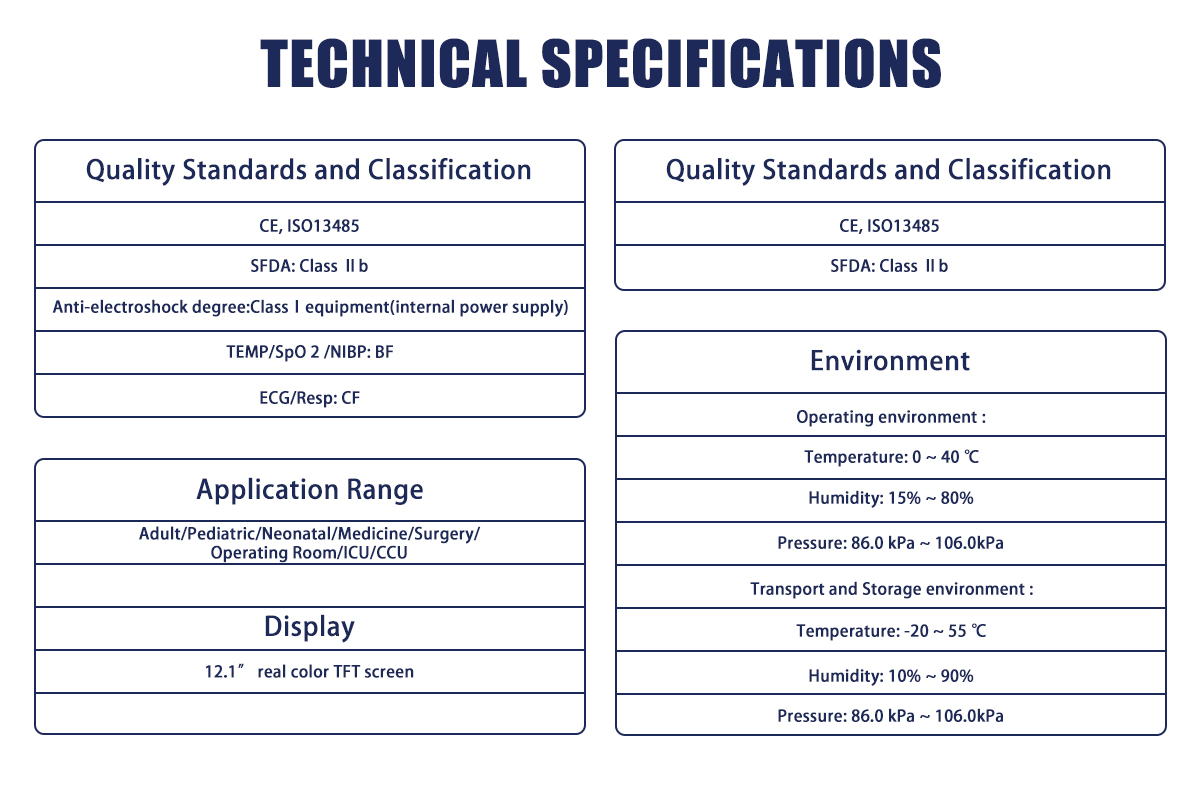

TECHNICAL SPECIFICATIONS |
ECG |
SpO2 |
|
Quality Standards and Classification |
5 Leads: RA, LA, LL, RL, V |
Measurement range: 0 - 100% |
|
CE, ISO13485 |
Lead mode: I,II, III, AVR, AVL, AVF, V |
Rosolution:1% |
|
SFDA: Class IIb |
Gain: x 1.25mm/mV,2.5mm/mV, |
Accuracy: 70% - 100%土2% |
|
Anti-electroshock degree: |
5. 0mm/mV, 10mm/mV, |
40%-69%土3% |
|
Class 1 equipment |
20mm/mV (error ≤ 5%) |

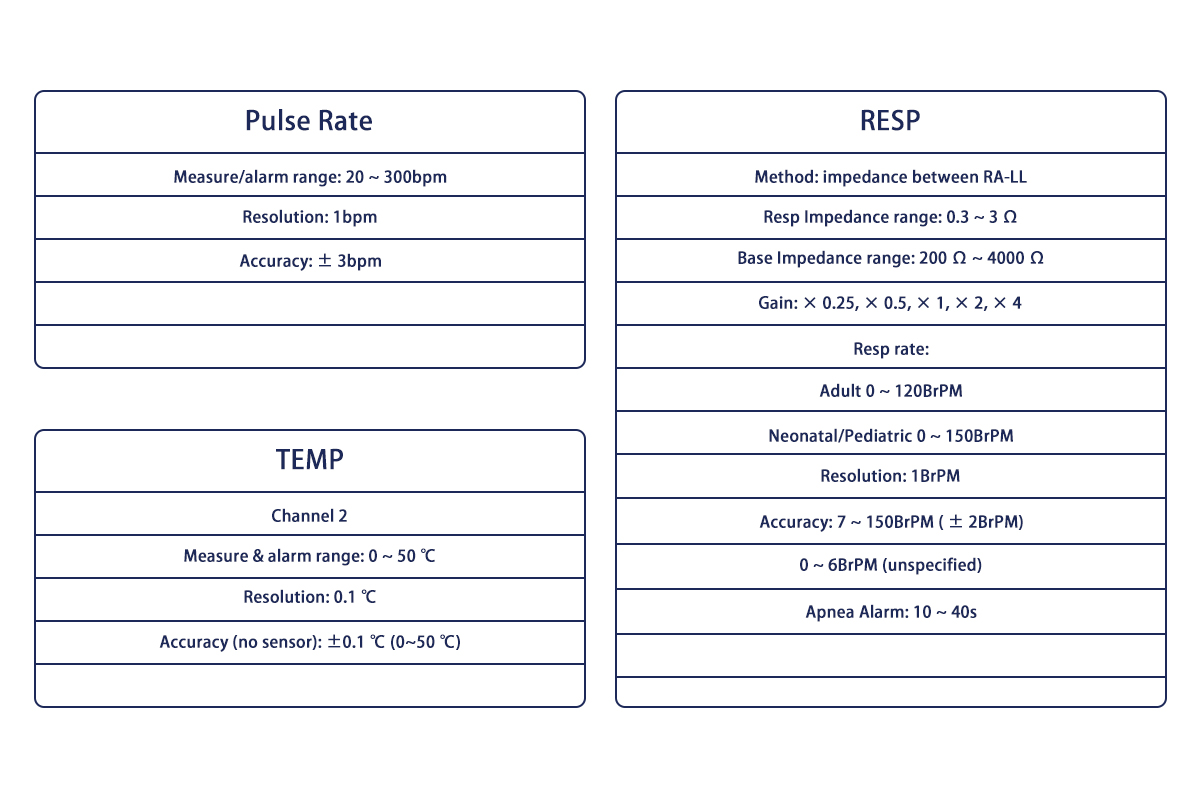

Pulse Rate |
|
(internal power supply) |
Sweep speed: 6. 25mm/s, 12.5mm/s,25mm/s, |
Measure/alarm range: 20 - 300bpm |
|
TEMP/SpO 2 /NIBP: BF |
50mm/s (errors土10%) |
Resolution:1bpm |
|
ECG/Resp: CF |
Bandwldth: Surgery 1- 25 Hz |
Accuracy:土3bpm |
|
Application Range |
Monitor 0.5 - 40 Hz |
RESP |
|
AdultPediatricNeonatal/Medicne/Surgery1 |
Diagnostic 0.05 - 130 Hz |
Method: impedance betwoen RA-LL |
|
Operating Room/ICU/CCU |
Sensitvity: >200μ V P-P |
Resp Impedance range:0.3- 3Ω |
|
Display |
CMRR:112dB |
Base Impedance range: 200 Ω - 4000 Ω |
|
12.1" real color TFT screen |
Dilferental Input Impedance: >5M |
Bandwidth: 0.3 - 2.5Hz |
|
Environment |
ohm Electrode Offset Potential:土300mV |
Gain: x0.25, x0.5,x1,x2,x4 |
|
Operating environment ; |
Polarization Voltage: ≥土500mV |
Resp rate: |
|
Temperature: 0 -40 C |
Input Impedance:≥5 M |
Measurement Range |
|
Humidity: 15% - 80% |
Calibration Voltage: 1mV士5% |
Adult0- 120BrPM |
|
Pressure: |
ST Segment |
Neonatal/Pediatric 0 - 150BrPM |
|
86.0 kPa - 106.0kPa |
ST Segment Range: -2.0mV ~ +2.0mV |
Resolution:1BrPM |
|
Transport and Storage environment : |
Accuracy;0.02mV |
Accuracy: 7 - 150BrPM (土2BrPM) |
|
Temperature: -20- 55 C |

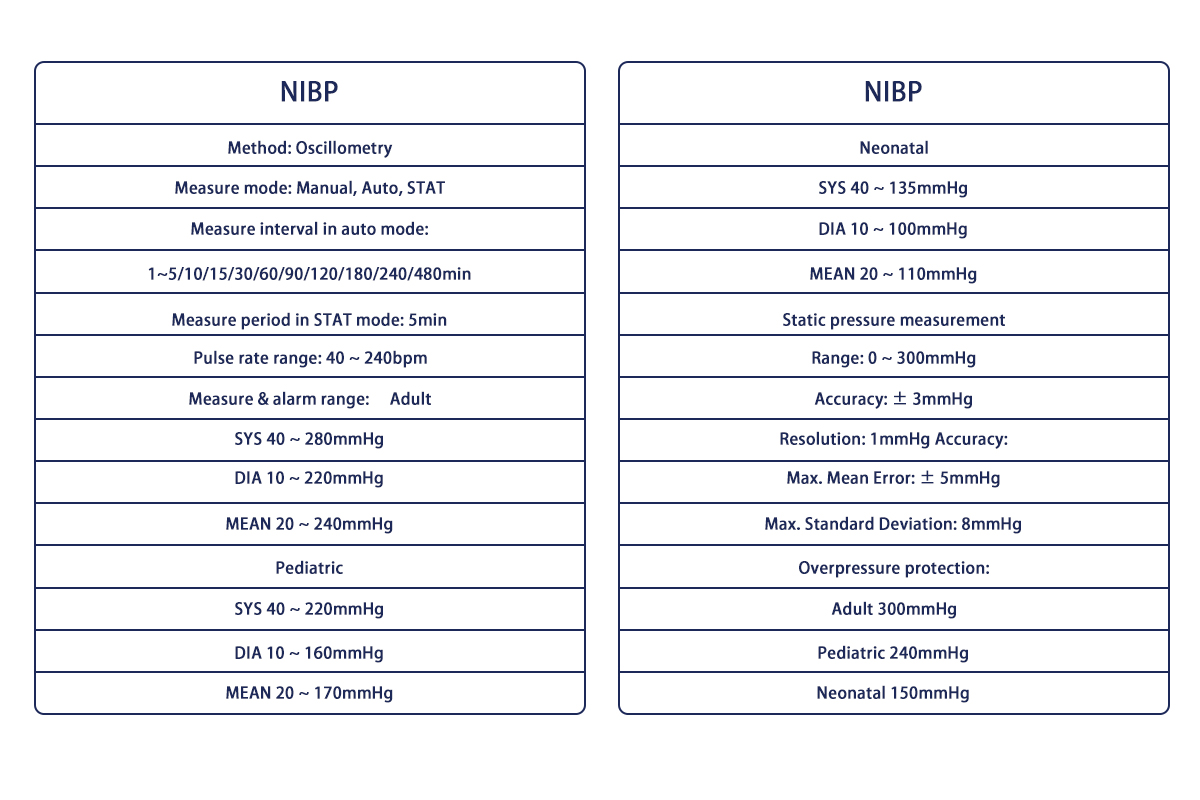

NIBP |
0 - 6BrPM (unspecifed) |
|
Humidity: 10% - 90% |
Method:Osillometry |
Apnea Alarm: 10 ~ 40s |
|
Pressure: 86.0 kPa - 106.0kPa |
Measure mode:Manual, Auto, STAT |
TEMP |
|

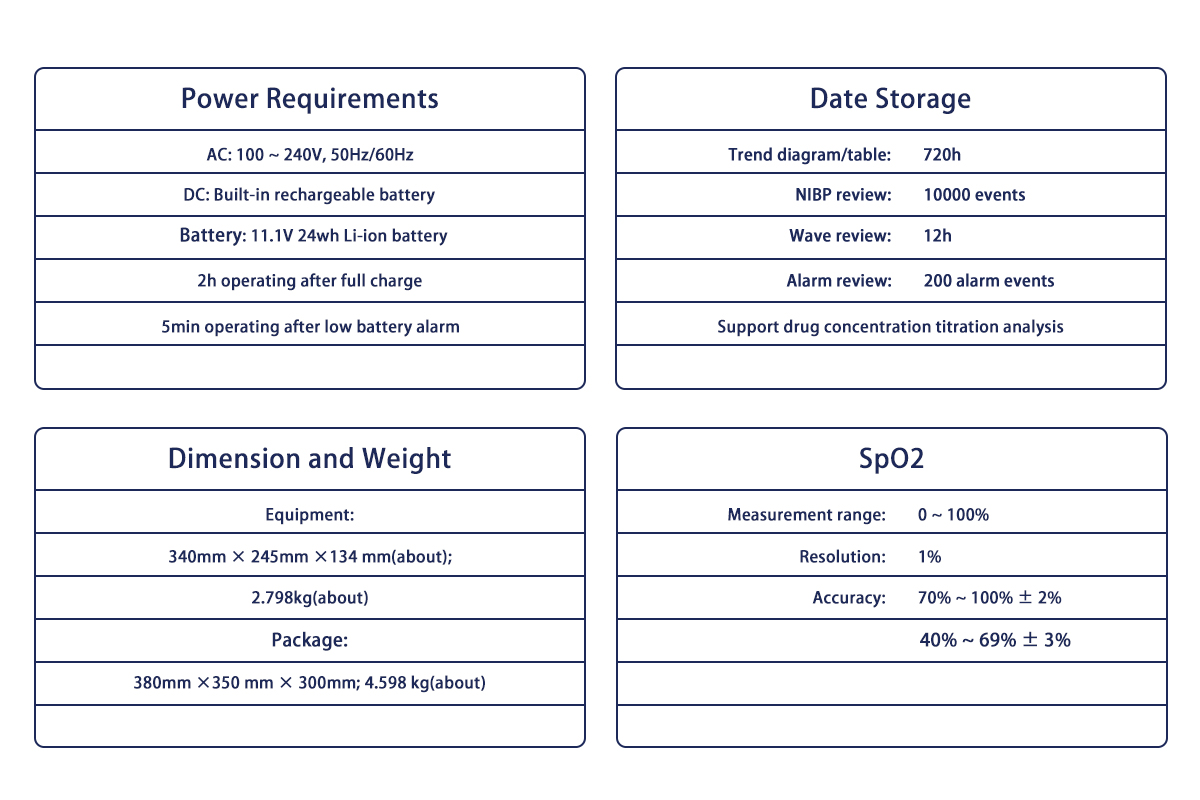

Power Requirements |
Measure interval in auto mode: |
Channel2 |
|
AC: 100 - 240V, 50Hz/60Hz |
1-5/10/15/30/60/90/120/180/240/480min |
Measure & alarm range: 0- 50 C |
|
DC: Billtin rechargeable battery |
Measure period in STAT mode: 5min |
Resolution:0.1 C |
|
Battery: 11.1V 24wh LHion battery |
Pulse rate range: 40 - 240bpm |
Accuracy (no sensor): +0.1 C (0~50 C) |
|
2h operating after full charge |
Measure & alarm range:Adult |

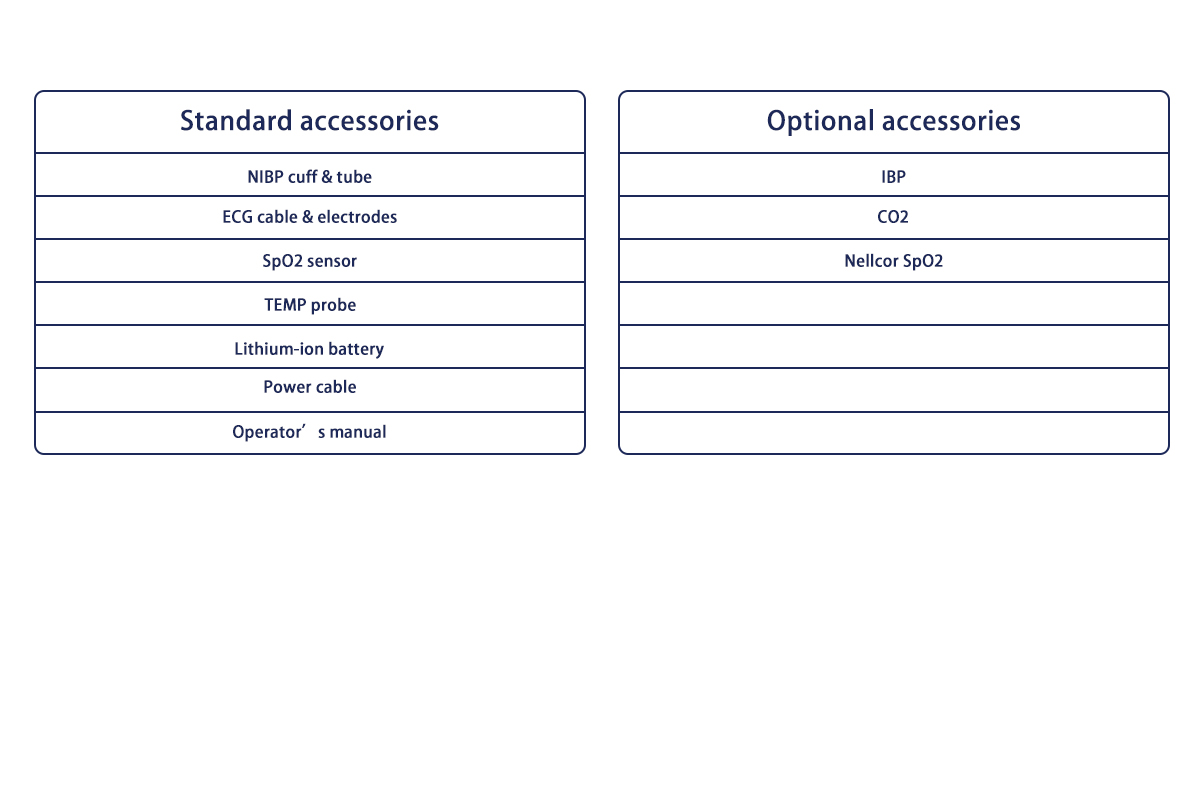

Standard accessories |
|
5min operating after low battery alarm |
SYS40 - 280mmHg |
●NIBP cuff & tube |
|
Dimension and Weight |
DIA 10 - 220mmHg |
●ECG cable & electrodes |
|
Equlpment: |
MEAN 20 - 240mmHg |
●SpOz sensor |
|
340mm x 245mm x 134 mm(about);2.798kg(about) |
Pediatric |
●TEMP probe |
|
Package: |
SYS .40 ~ 220mmHg |
●Lithium-ion battery |
|
380mm *350 mm x 300mm; 4.598 kg(about) |
DIA10 - 160mmHg |
●Power cable |
|
Date Storage |
MEAN 20 - 170mmHg |
●Operator's manual |
|
Trend dlagram/table: 7x24h |
Neonatal |
Optional accessories |
|
NIBP revilew:400 events |
SYS . 40 - 135mmHg |
●IBP |
|
Wave review;100min |
DIA10 - 100mmHg |
●CO2 |
|
Alarm review;100 alarm events |
MEAN 20 - 110mmHg |
●Nellcor SpO2 |
|
Support drug concentration titration analysis |
Static pressure measurement |
|
|
|
Range:0 - 300mmHg |
|
|
|
Accuracy:土3mmHg |
|
|
|
Resolution: 1mmHg Accuracy: |
|
|
|
Max. Mean Error:土5mmHg |
|
|
|
Max. Standard Deviation: 8mmHg |
|
|
|
Overpressure protection: |
|
|
|
Adult 300mmHg |
|
|
|
Pediatric 240mmHg |
|
|
|
Neonatal 150mmHg |
|
|
|
|
|
